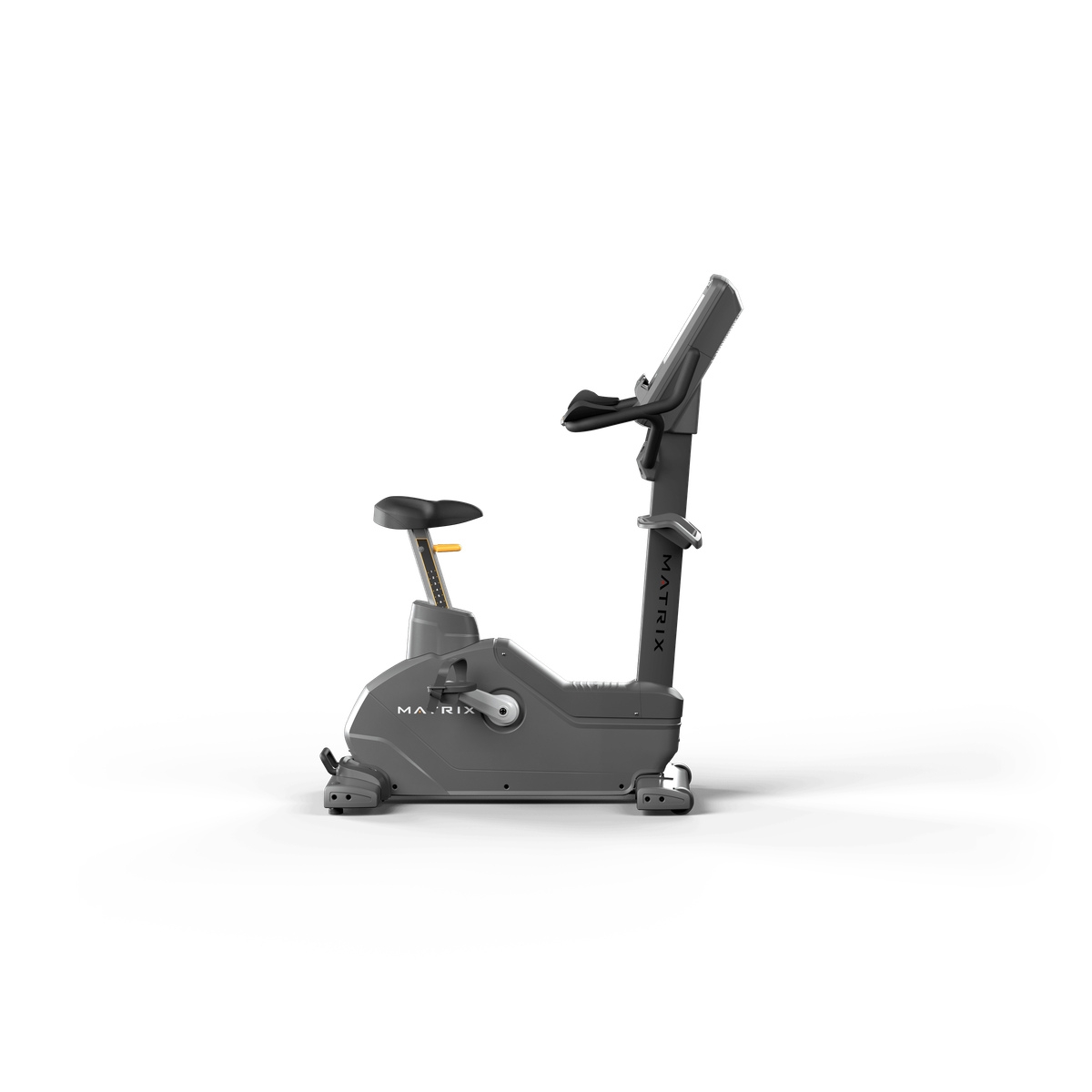

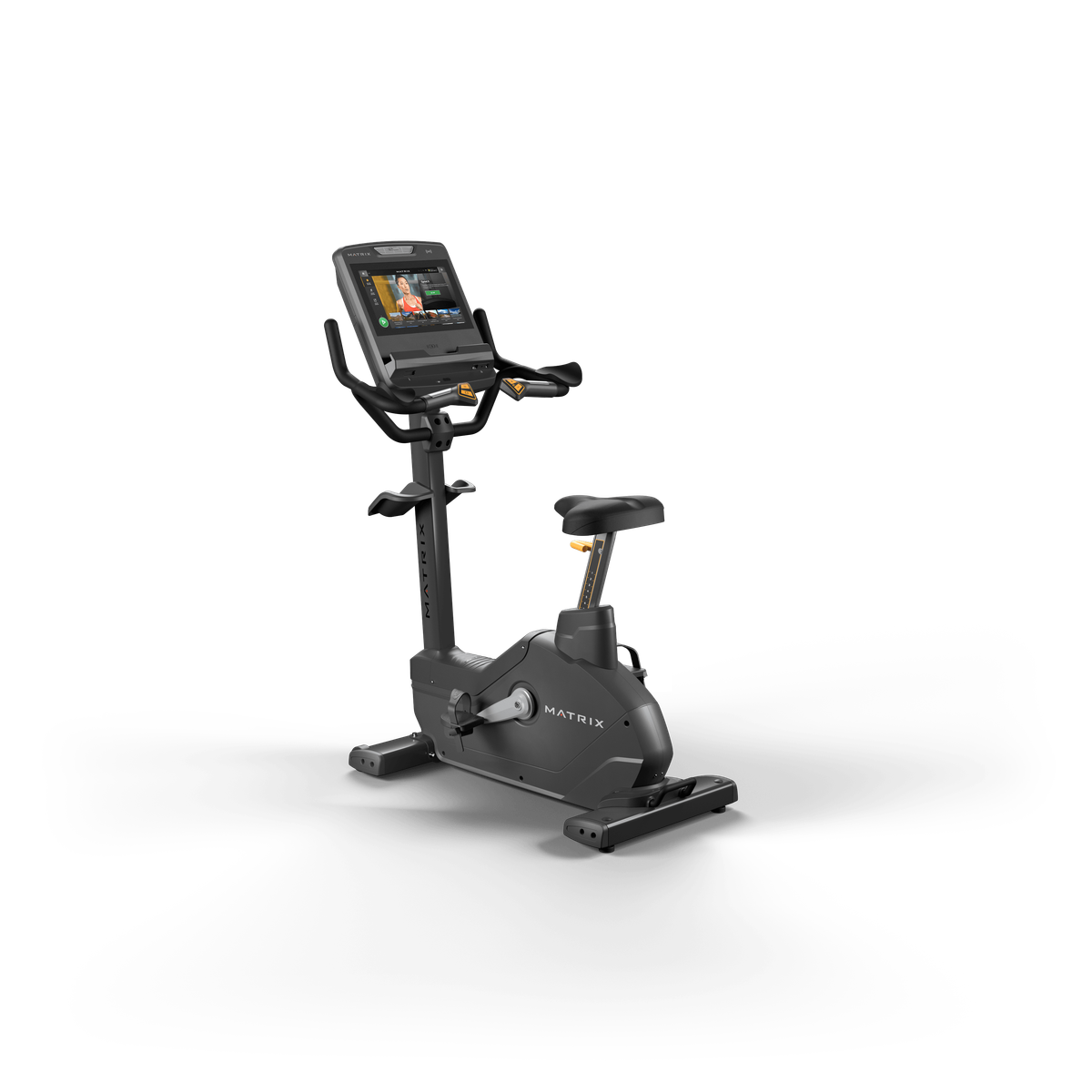

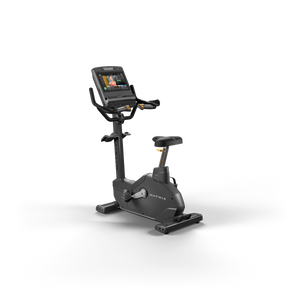

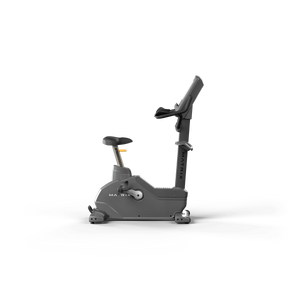

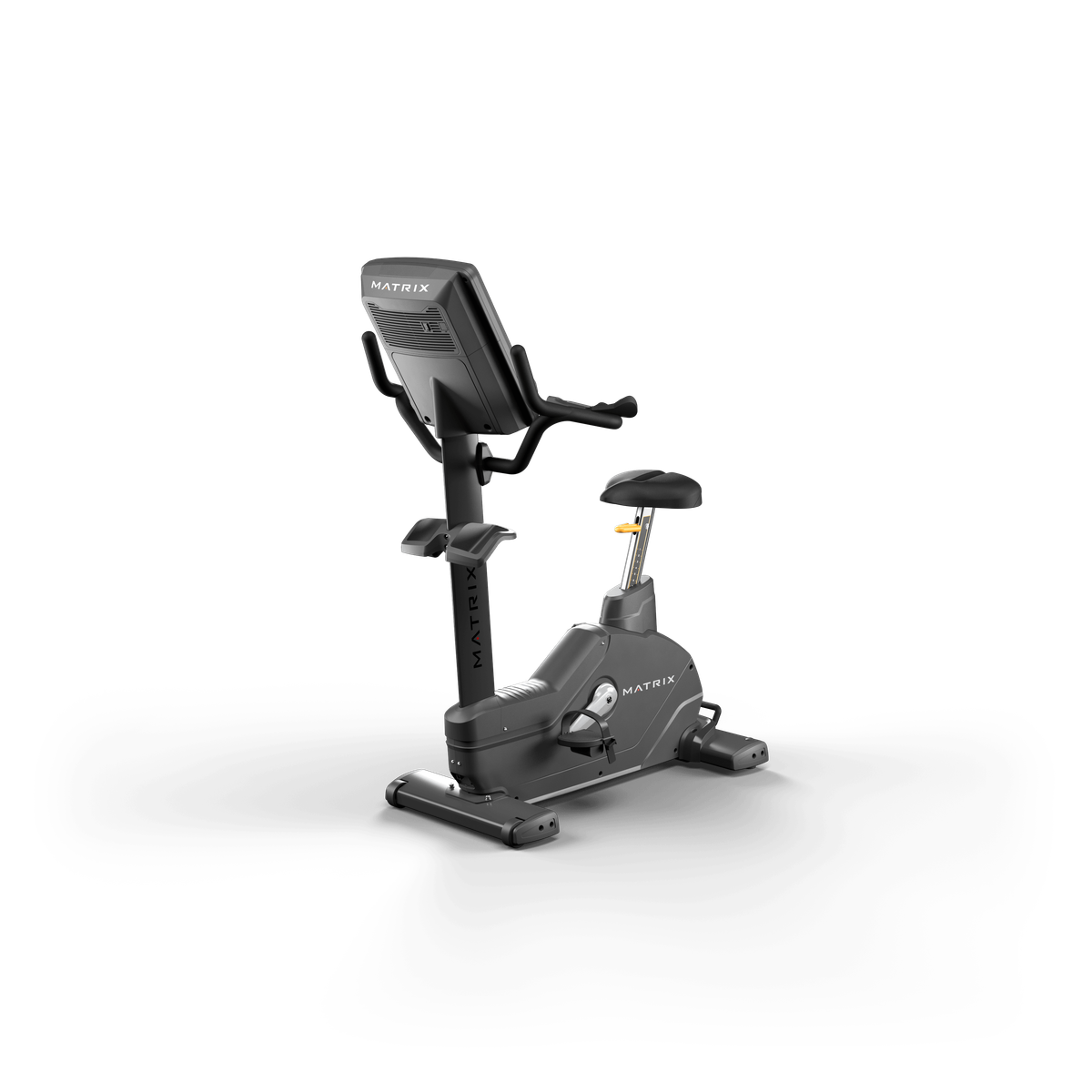

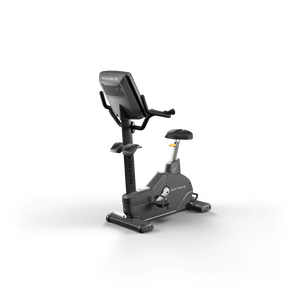

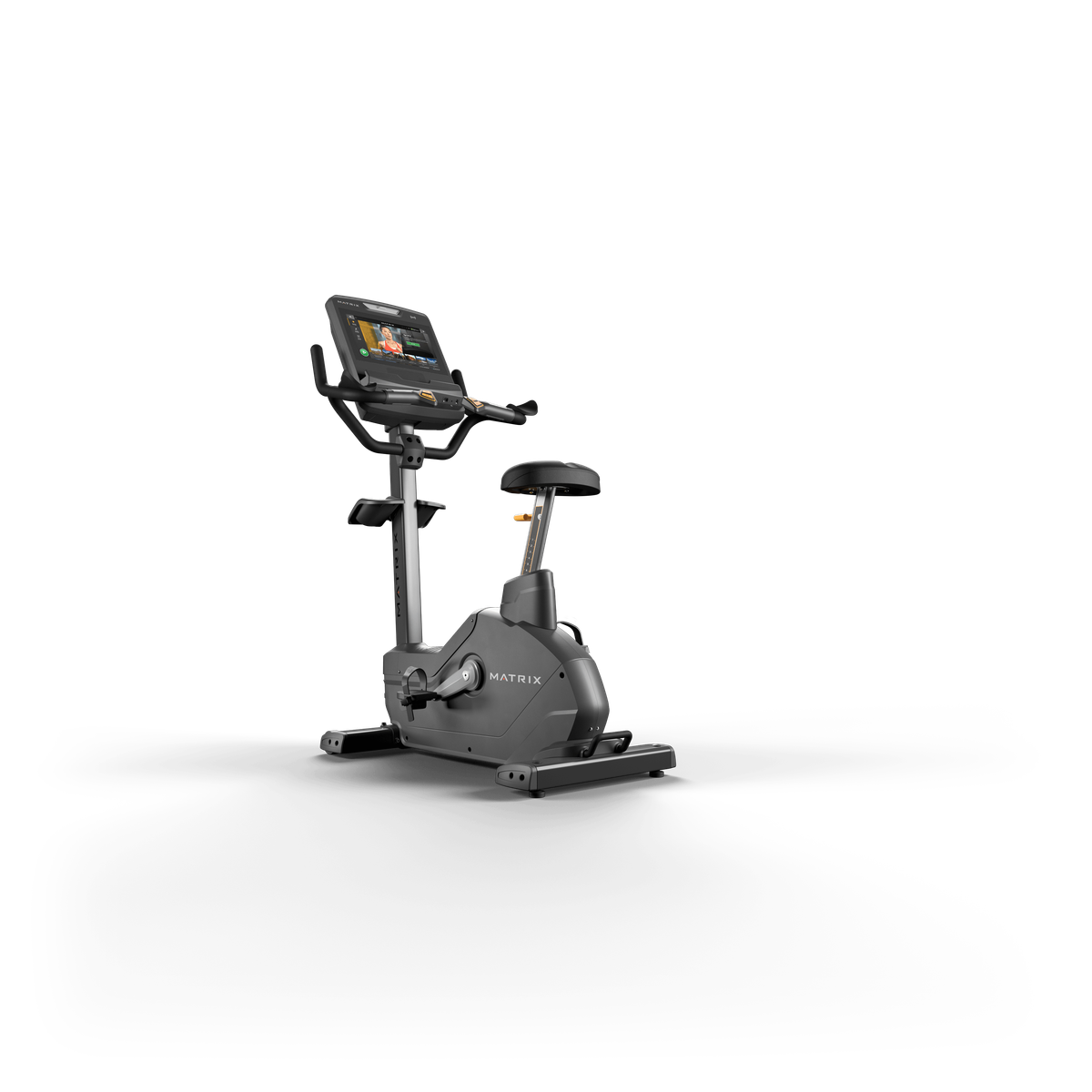

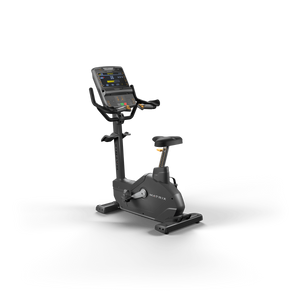

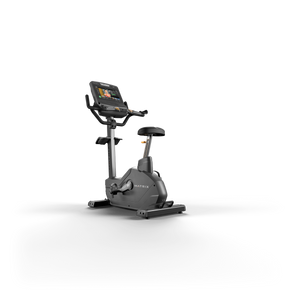

Matrix Endurance Upright Cycle

Call for Pricing
Our Endurance Upright Cycle gives beginners and cycling enthusiasts alike the feel of a real outdoor ride. Accessible, race-inspired design makes even long rides more comfortable than expected, and a range of smart features make it easy to service and place the cycle wherever your facility has space.

Availability

Please contact us to discuss local availability and delivery/installation options for this item.

See Locations

Description

Console Options

LED Console: Virtually anyone can step up to our LED Console and enjoy the easy navigation of the interface. Complete, easy-to-read workout feedback helps members gauge performance at a glance.

Premium LED Console: Give members the intuitive navigation of an LED with a more engaging look. An 8,000-pixel display fills the screen with colour and sharp graphics, providing clear, easy-to-read feedback in large numbers and letters.

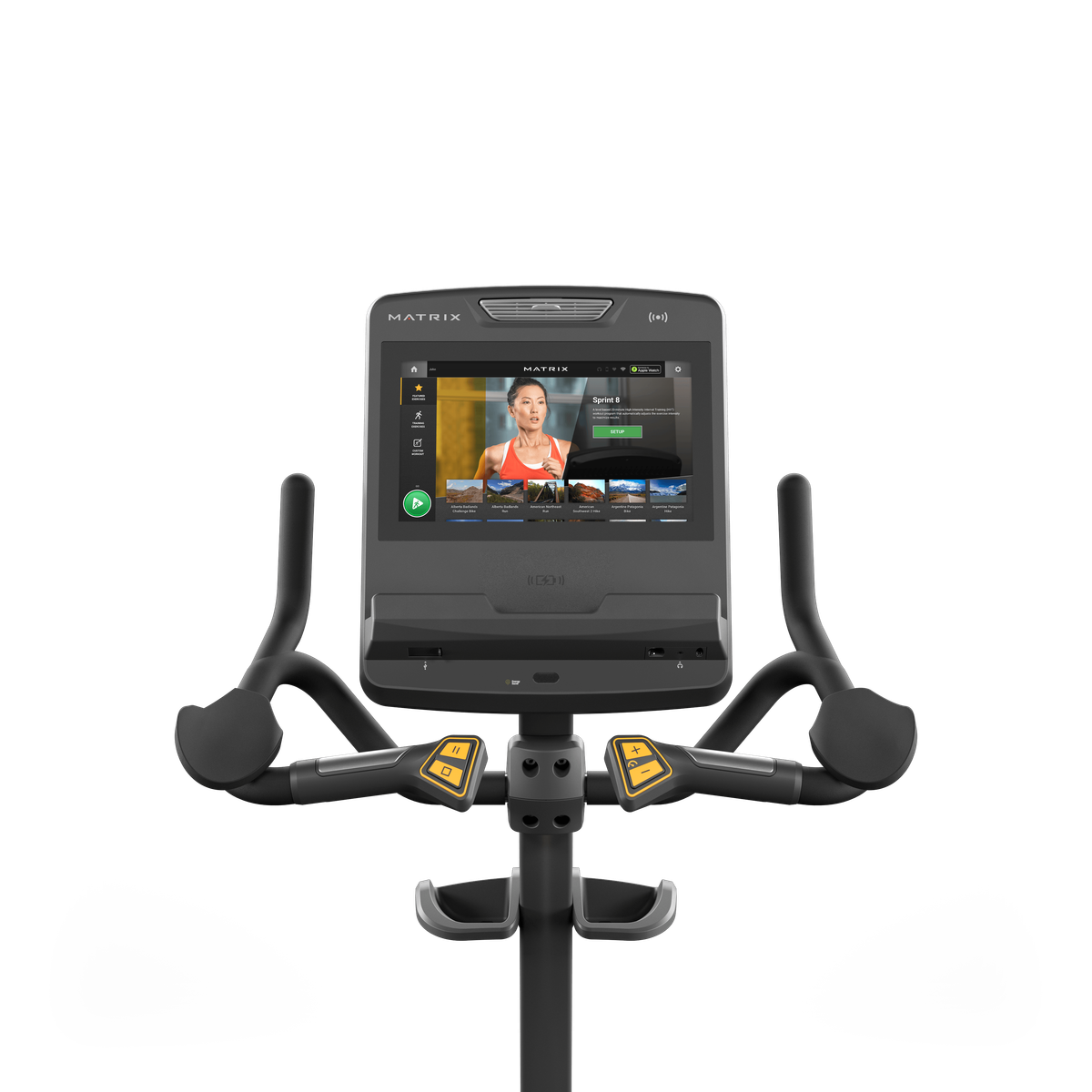

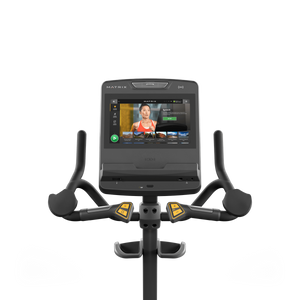

Touch Console: WiFi-enabled Touch Console features an app-based interface that mirrors familiar smartphone and tablet operating systems, making it easy for members to connect to the content that keeps them moving

Note: Products with Touch Console must be connected to a power source.

Built for Everyday Training

The Endurance Upright Cycle makes it easy to create an effective workout around your fitness goals. Maintain a steady pace to build cardiovascular endurance, alternate resistance levels for interval training, or increase resistance to challenge your legs and elevate the intensity of your session.

The intuitive console keeps important workout information easy to monitor, allowing you to track metrics such as time, distance, speed, calories, resistance, and more. With smooth cycling mechanics, adjustable intensity, and dependable Matrix construction, the Endurance Upright Cycle provides a comfortable and versatile cardio experience built to support consistent training.

Specifications

Resistance System Brushless generator
Minimum Watts 2 W powered or 13 W self-powered
Minimum RPM 10 RPM powered or 25 RPM self-powered
Pedal Spacing 17.5 cm / 6.9”
Seat Material Sewn vinyl over foam
Seat Adjustment Single-hand lever
Handlebar Design Racing design with elbow support
Crank Design Three piece with forged arms and integrated puller
Top-down Levelers Yes
Contact & Telemetric HR Yes
Rear-lift Handle Yes
Maximum User Weight 182 kg / 400 lbs.
Ethernet Connectivity Yes
Assembled Dimensions 122 x 74.4 x 152.1 cm / 48" x 29.3" x 59.9"
Power Requirements Self-powered or 100–240 V — 50/60 Hz AC
Resistance Range 2–750 W
Assembled Weight 70 kg / 154.3 lbs.
Shipping Weight 83 kg / 183 lbs.
Resistance Levels 30

Warranty

Frame, Drive & Parts Labour 3 years
Frame Parts 7 years
Drive Motor Parts 7 years
Parts 3 years
Wear Items 90 Days

Matrix Cardio Consoles

Choose what kind of console technology you pair with your equipment, providing experiences that span from beautifully simple, to digitally connected and rich with entertainment. You can also access our most powerful Connected Solutions with WiFi-enabled consoles, including Community 360, Engage 360 and Facility 360.
