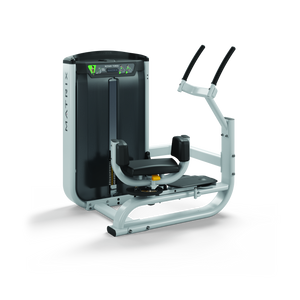

Matrix Ultra Base Rotary Torso

Login to view price

Overview

The powerful and comfortable Ultra Series gives you the most advanced functionality with an intuitive design that couldn’t be easier to operate.

Product Details

  • + - Description

    Both durable and beautiful, the Ultra Series will exceed your expectations when it comes to earning and retaining members.

    Exercise Placards

    Conveniently located and easy to read exercise placards offer a quick reference to targeted muscle groups and proper machine use. Placards also offer colour references to easily identify muscle-group categories.

    Space-Saving Design

    All Ultra single-station units boast a compact footprint with a uniformly low stack height that can be placed in back-to-back configurations to save valuable floor space and improve the aesthetic of your fitness centre.

    Incremental Weights

    Incremental weights are easily accessible from the seated position. Numeric selection allows users easy reference for future use.

    Convenience Features

    User amenities include a convenient accessory pad and personal device holder.


  • + - Specifications

    Adjustments

    COLOUR CODED PIVOTS & POINTS OF ADJUSTMENT Yes
    USER ADJUSTMENT RANGE 4 knee pad start positions on each side

    Frame & Cables

    AVAILABLE FRAME COLOUR Iced Silver, Matte Black, Gloss Black, Lace White, Polarized Titanium
    MACHINE ANCHORING Independent machine hold down brackets
    INTEGRATED LEVELING SYSTEM Yes, top-down leveler
    CABLE TRANSMISSION Internally lubricated cables & fittings
    FRAME FINISH Proprietary two-coat powder process

    Tech Specs

    REP COUNTER MACHINE USAGE TRACKING Service mode tracks total machine reps and hours of use
    REP COUNTER POWER SUPPLY 2 AA batteries
    OVERALL ”IN-USE” DIMENSIONS (L X W X H) 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
    OVERALL ”STATIC” DIMENSIONS (L X W X H) 117 x 123 x 141 cm / 45.8” x 48.2” x 55.2”
    PRODUCT WEIGHT (G7-S55B)

    202 kg / 445 lbs.

    PRODUCT WEIGHT (G7-S55BH)

    224 kg / 495 lbs.



    User Amenities

    FRONT PLACARDS
    Muscle call outs, exercise specific stretching, start & finish exercise illustrations, proper machine adjustments, colour-coded machine identification
    CONTOURED SEAT Yes
    PERSONAL STORAGE Two tactile storage mats, personal device cradle and towel hook
    REAR PLACARDS Color-coded machine identification, exercise specific stretching
    PLACARD COLOUR CODING Green (core)
    REP COUNTER Electronic counter displays reps, exercise time and rest time
    KNEE PAD WEAR COVER Yes

    Weight Stack

    TOTAL STACK WEIGHT 90 kg / 200 lbs.
    WEIGHT STACK GUARDING Full front and rear shields
    WEIGHT PLATE INCREMENTS 4.5 kg / 10 lbs
    MAX TRAINING WEIGHT 93.4 kg / 207.5 lbs
    INCREMENTAL WEIGHT SYSTEM 1.1, 2.3, 3.4 kg / 2.5, 5, 7.5 lbs
    CONSISTENT 53” STACK HEIGHT Yes
